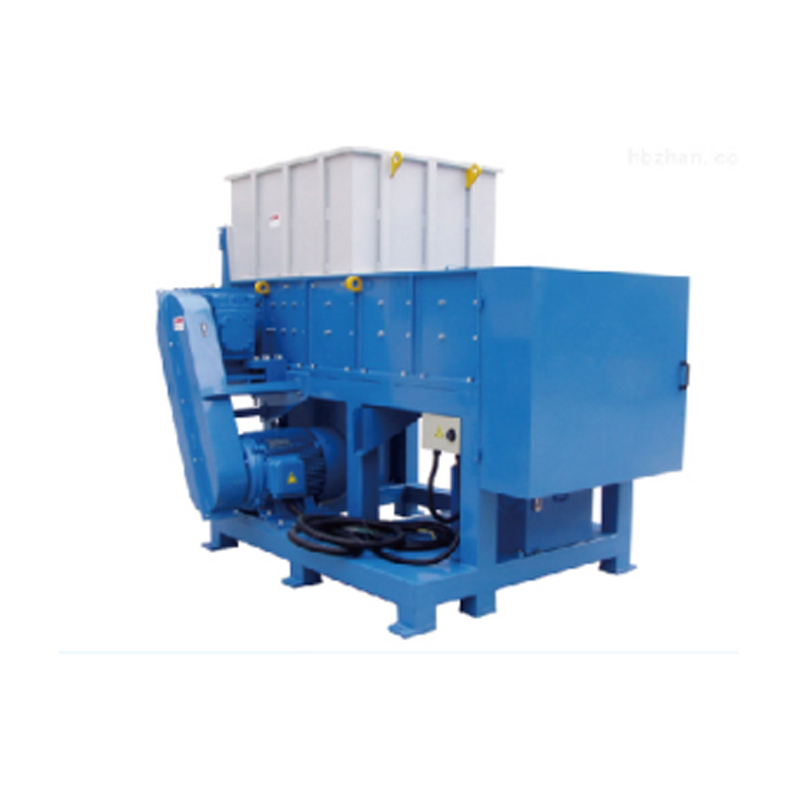

DSJ Single Shaft Shredder: Shreds plastic/rubber/wood, suitable for recycling centers
Main technical parameters
| Type | DSJ2260 | DSJ4080 | DSJ40120 |
| Roller diameter(mm) | 220 | 310 | 400 |
| Quantutues of movable shear blade | 26 | 45 | 68 |
| Power(kw) | 18.5 | 30 | 55 |
| Pushing process | 500 | 700 | 1000 |
| Weight(Kg) | 2000 | 3800 | 6000 |
| Inlet size(mm) | 600×700 | 800×900 | 1200×1400 |
Working Principle
The DSJ Single-Shaft Shredder takes a single-shaft cutter roller as its core working component, with interlaced shredding blades distributed on the cutter roller. When the equipment operates, the motor drives the single-shaft cutter roller to rotate at high speed. When large-sized materials (such as plastic pipes, packing barrels, forklift pallets, etc.) enter the shredding chamber, the rotating blades and the fixed toothed plate inside the chamber interlock with each other. Through the combined action of shearing, tearing and squeezing, the materials are gradually crushed into small pieces. At the same time, the material guiding structure in the shredding chamber guides the materials to continuously contact the blades, avoiding material jamming and ensuring a stable and continuous shredding process. Finally, the materials are processed into a shredded form that meets the requirements of subsequent recycling or reprocessing.
Product Features
Strong Shredding Capacity: Relying on the precise cooperation between the single-shaft cutter roller and the fixed toothed plate, it can efficiently process large-sized, hard or tough materials. The shredding effect is stable, and the shredded materials have a uniform shape;
Wide Application Scope: Suitable for shredding various materials such as plastic, rubber, wood and waste paper, especially for volume reduction and crushing of large-sized waste materials, covering multiple fields including recycling and environmental protection;
Safe and Reliable Operation: Equipped with an overload protection device, it can prevent equipment damage caused by material overload; at the same time, it is equipped with a safety protection structure to avoid potential safety hazards during operation;
Convenient Maintenance: The shredding blades adopt a detachable design, which can be individually disassembled for replacement or grinding after wear; the internal structure of the equipment is simple, with no complex dead corners, making cleaning and daily maintenance easy after shutdown.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
