01

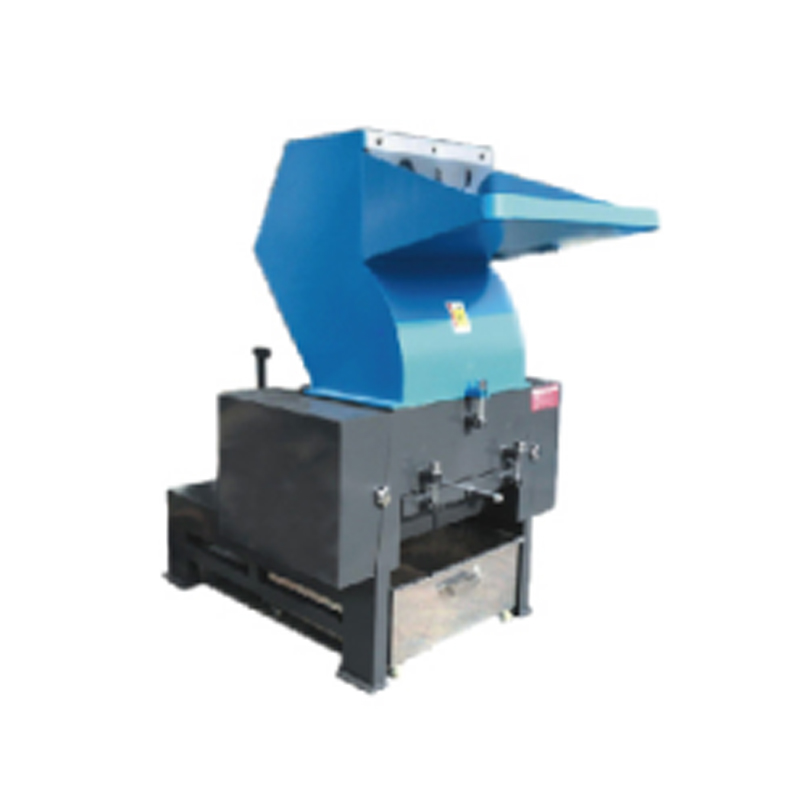

Film Crusher: Crushes plastic film, suitable for recycling and packaging factories
Main technical parameters
| Model | Crusher Room Diameter（mm） | Mil Aility（kg/m） | fficiency（kw） | Constant Knife Number | Constant Knife Number | Machine Size | Weight（kg） |
| PC300C | 220×308 | 100 | 5.5 | 2 | 3 | 1050×800×1200 | 450 |
| PC400C | 245×408 | 200 | 7.5 | 2 | 6 | 1200×880×1330 | 550 |
| PC600C | 340×608 | 300 | 11 | 2 | 6 | 1200×880×1330 | 750 |
Working Principle
The film crusher takes a knife roller with anti-winding design as its core working component, and the surface of the knife roller is equipped with sharply edged knives arranged in a special pattern. When the equipment operates, the motor drives the knife roller to rotate at high speed. When materials such as plastic films and stretch films enter the crushing chamber, the high-speed rotating knives first cut the films quickly. At the same time, the material guide plate in the crushing chamber cooperates with the knife roller to prevent the films from winding around the knife roller due to their thin and light characteristics. Through continuous shearing and tearing, the films are gradually crushed into uniform pieces, which are then discharged through the discharge structure. This provides raw materials that meet the requirements for subsequent recycling, granulation or reuse, and the entire process can effectively solve the problems of easy jamming and winding during film crushing.
Product Features
Strong Adaptability: Specially designed for film materials, it can efficiently crush various plastic films, stretch films, mulch films, etc., and can also handle some thin and light plastic scraps, meeting the special crushing needs in the plastic recycling field;
Stable and Low-Noise Operation: Equipped with a sound insulation device, it can effectively reduce operating noise and minimize interference to the working environment; in addition, the power output is optimized for film crushing to avoid unstable equipment operation caused by fluctuations in material load;
Convenient Maintenance: Adopting a detachable knife design, the knives can be separately disassembled for grinding or replacement after wear, without the need for overall equipment disassembly; there are no complex dead corners in the crushing chamber, making cleaning easy after shutdown and reducing the impact of residual materials on the next crushing process;
Anti-Winding Design: Through the special arrangement of the knife roller and the material guide structure, it effectively prevents films from winding around the knife roller, ensures the continuous and smooth crushing process, and reduces the risk of equipment jamming and failure.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
