01
Full-Automatic Packing Machine
Main technical parameters
| Material name | Polyvinyl chloride |
| Packing weight | 0-30 bags per package |
| Rated weighing | 25 bags per package |
| Packing error | ≤0.2%FS |
| Weighing speed | 350-450 bags per hour |
| Stacking velocity | 350-450 bags per hour |

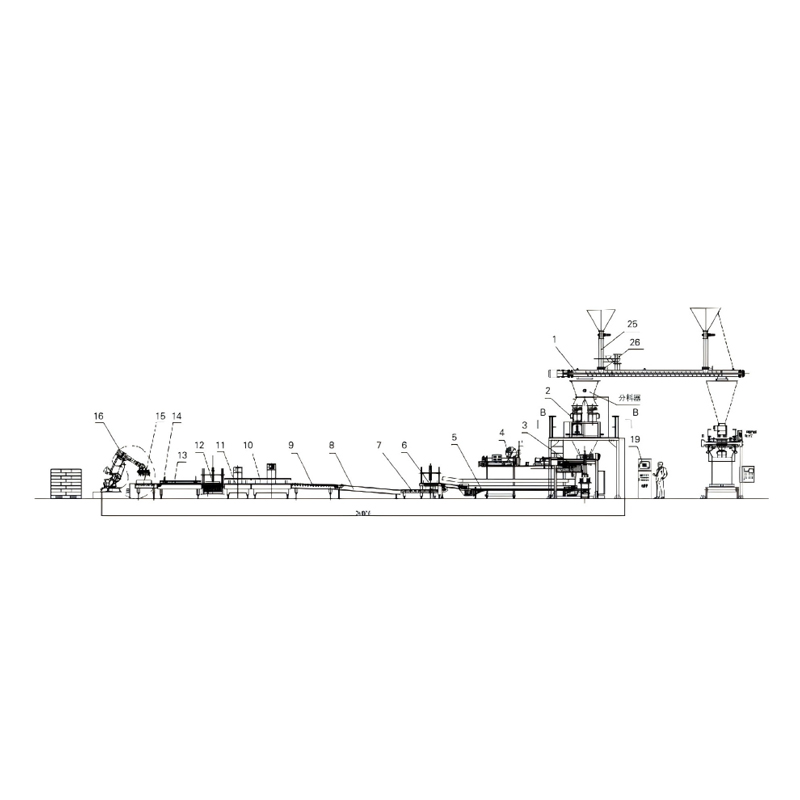

| serial number | mark | designation | amount | serial number | mark | designation | amount |
| 1 | LH-H7000A/B/C | spiral fedng conweyor | 1 | 14 | HPS-2000 | bufer corveyor | 1 |
| 2 | LCS-25N1D/2D | quantitative weighing electronic scale | 1 | 15 | GGS-1020 | inducton roler coeyor | 1 |
| 3 | 3CM-5U/5F | automatic bag machine | 1 | 16 | IRB6640-175/2.8 | stacking machine hand | 1 |
| 4 | KS-12DC/DS-7A | bale sewing thermal sealing machine | 2 | 17 | NB815-01-000 | hgh and low fe roler omeyor | 2 |
| 5 | PS-6500 | main belt orweyor | 2 | 18 | PS-6000 | doubing bet conveyor | 1 |
| 6 | DDS-1000 | staght ine rewind corveyor | 1 | 19 | DKG-1800 | electrical control units | 2 |
| 7 | WGS-1200 | bend roler corveyor | 1 | 20 | NB815-02-000 | feed surge bin | 1 |
| 8 | XPS-3000 | slope belt conweyor | 1 | 21 | LCS-KG12Z | big packing electronic scale | 3 |
| 9 | GFS-1500 | roler plastic coreyor | 1 | 22 | NB815-03-000 | 1 dray comweyor1 | 1 |
| 10 | GKSP-1P | metal detactor | 1 | 23 | NB815-04-000 | 2 dray comweyor2 | 1 |
| 11 | GKH-100 | checkweighter | 1 | 24 | QMC-24 | centalzed heg puse dustremoval | 1 |
| 12 | DTC-100 | linter | 1 | 25 | NB815-05-000 | short splce | 5 |
| 13 | LP2600 | ink-jet printer | 1 | 26 | DN200 | pneumaic butefy valve | 5 |
Working Principle
Automatic packaging machines operate through a systematic, multi-step process driven by mechanical components, sensors, and control systems.
First, the machine’s feeding unit automatically conveys raw materials (e.g., granules, liquids, or solid items) to the measuring module, which uses load cells, volumetric cups, or flow meters to ensure precise quantity control—critical for industries like pharmaceuticals and food.
Next, the packaging material (such as plastic films, pouches, or cartons) is unwound and shaped into the desired form (e.g., sachets, bottles) via forming mechanisms.
Then, the filled materials are sealed tightly using heat, pressure, or ultrasonic technology to prevent leakage and preserve product quality.
Finally, post-packaging steps like labeling, date stamping, and sorting are completed by auxiliary units, with sensors and PLC (Programmable Logic Controller) systems monitoring each stage to detect errors (e.g., incomplete seals) and trigger automatic adjustments or alarms, ensuring continuous, consistent operation.
Product Features
Automatic packaging machines boast several key features that make them indispensable in modern manufacturing.
First, they offer high efficiency: capable of handling hundreds to thousands of packages per hour, far exceeding manual speeds, which directly supports large-scale production.
Second, precision and consistency are standout advantages—advanced measuring and sealing technologies minimize dosage errors (often within ±0.5%) and ensure uniform package quality, vital for compliance in pharmaceutical and food industries.
Third, they are versatile: with adjustable modules, they can adapt to diverse products (e.g., switching from liquid detergents to powder detergents) and package formats (pouches, bottles, boxes) by replacing parts or modifying settings.
Additionally, they reduce labor reliance, cutting costs and avoiding human errors caused by fatigue. Many models also integrate smart functions, such as touchscreen controls and data logging, enabling easy operation and production tracking, while durable materials (e.g., stainless steel) ensure long service life and meet hygiene standards for sensitive industries.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
