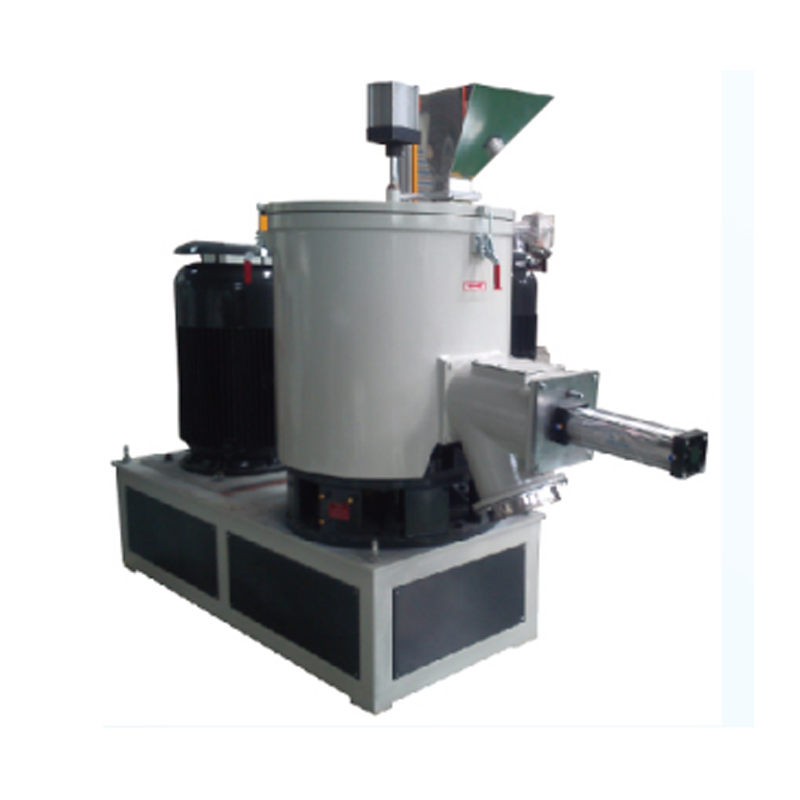

High-speed Mixing and Drying Machine
Main technical parameters
| Model | Motor power | Mixing capacitr | Mechanical size | Weight |
| GHS-25 | 4kw | 100kg/3min | 1100×600×1080 | 160kg |
| GHS-50 | 7.5kw | 200kg/3min | 1210×700×1200 | 240kg |
| GHS-100 | 11kw | 420kg/3min | 1480×900×1400 | 420kg |
| GHS-150 | 15kw | 600kg/3min | 1600×1100×1600 | 650kg |
Working Principle
The high-speed mixing, color-mixing and drying machine integrates three functions: mixing, color mixing and drying, with a high-speed rotating stirring paddle as its core. When the equipment operates, the stirring paddle drives the materials to move at high speed, generating strong shearing and convection effects. This enables materials of different colors and components to quickly interpenetrate and blend, achieving uniform color mixing. At the same time, hot air is introduced into the machine body, and the hot air fully contacts the high-speed tumbling materials, accelerating the evaporation of moisture on the material surface. In addition, the equipment's exhaust structure promptly discharges moist and hot air to prevent moisture reflow. While completing efficient color mixing and material mixing, the machine simultaneously realizes material drying, reducing the connection time of subsequent processes.
Product Features
Multi-Function Integration: It integrates mixing, color mixing and drying into one, eliminating the need for coordination between multiple devices, simplifying the production process and improving overall efficiency;
Excellent Processing Effect: High-speed stirring ensures uniform color mixing, and full contact between hot air and materials guarantees thorough drying, meeting two core requirements simultaneously;
Wide Adaptability to Scenarios: It can handle plastic particles, chemical powders, food raw materials, etc., and is particularly suitable for industries that have requirements for material humidity and color consistency;
Convenient Operation: Most adopt intelligent temperature control and speed adjustment designs, with simple parameter setting. There are no complex dead corners inside the equipment, making cleaning and maintenance convenient and reducing operation difficulty.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
