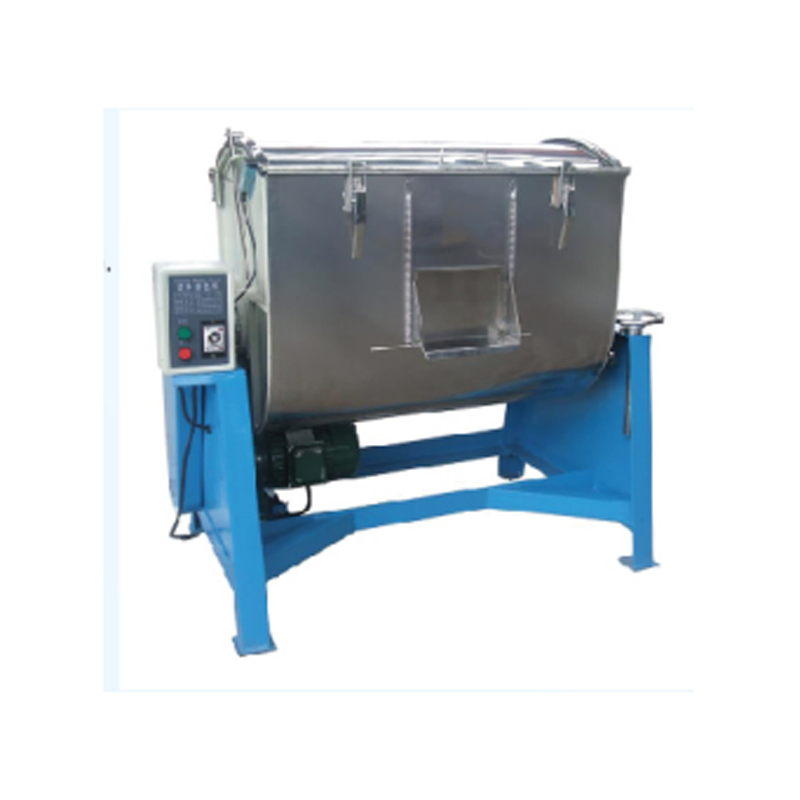

Horizontal Color Mixer: Large-batch mixing, suitable for large plastic and raw material factories
Main technical parameters
| Model | Motor power | Mixing capacitr | Mechanical size | Power Supply | Weight |
| WH-100 | 2.2kw | 100kg | 1290×830×1150 | 380v | 280kg |
| WH-150 | 3kw | 150kg | 1290×1040×1407 | 380v | 330kg |
| WH-200 | 4kw | 200kg | 1430×1230×1440 | 380v | 450kg |
| WH-300 | 5.5kw | 300kg | 1560×1300×1650 | 380v | 550kg |
Working Principle
The horizontal color mixer takes a horizontally placed mixing drum as its main body, with bidirectional ribbon or paddle-type mixing components installed inside the drum. When the equipment operates, the mixing components rotate along the horizontal axis, and the bidirectional structure drives materials to move toward both ends or the middle along the drum wall respectively, forming horizontal circular convection. At the same time, the special angle design of the mixing components can drive materials to turn up and down, breaking the material accumulation state. Under the dual effects of horizontal circulation and vertical turning, materials of different colors and components continuously interpenetrate, collide and blend. Additionally, the smooth inner wall of the drum prevents material retention, ultimately achieving uniform color mixing.
Product Features
Excellent Mixing Uniformity: Relying on bidirectional mixing and vertical turning, materials have no obvious stratification, and the color mixing effect is stable, making it suitable for scenarios requiring high color consistency;
Wide Material Adaptability: It can handle granular and powdery materials, and can also mix materials containing a small amount of additives, covering industries such as plastics, chemicals and food;
Stable Operation: The horizontal structure has a low center of gravity, resulting in low vibration and low noise during operation. The mixing components are made of wear-resistant materials, ensuring low failure rate and long service life;
Convenient Operation and Maintenance: The mixing drum is mostly equipped with side-opening doors or discharge ports, facilitating feeding and discharging. There are no complex dead corners inside, making cleaning simple and reducing daily maintenance workload.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
