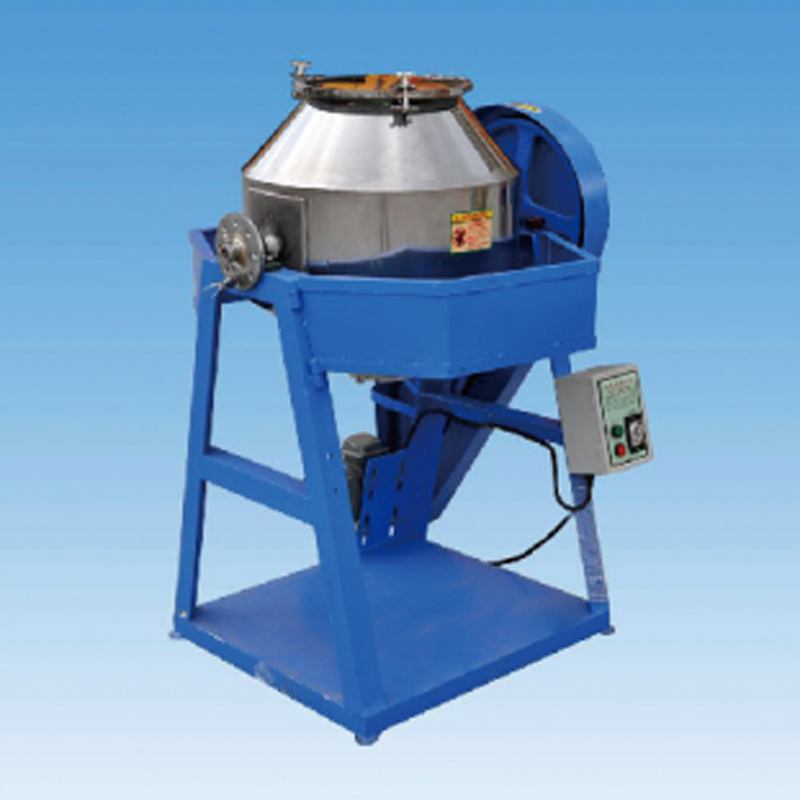

HZHS Series Rotary Colour Mixer
Main technical parameters
| Model | Motor power | Mixing capacitr | Mechanical size | Weight |
| HZHS-50 | 0.75kw | 50 | 900×1000×1400 | 60 |
| HZHS-100 | 1.5kw | 100 | 1050×1080×1450 | 80 |
Working Principle
The HZHS Series Rotary Color Mixer takes a 360° rotatable cylinder as its core working component. When the equipment operates, the cylinder rotates slowly around the horizontal axis. As the cylinder rotates, the materials inside are lifted to a certain height and then scatter freely due to gravity. During this process, the rotational movement of the cylinder constantly changes the relative positions of the materials, enabling materials of different colors and components to continuously collide, interpenetrate and blend. At the same time, the special flow guide rib structure inside the cylinder can further break up material agglomeration, guide the materials to form disordered rolling flow, and avoid local material retention. Finally, uniform color mixing and material blending are achieved.
Product Features
Gentle and Uniform Mixing: Relying on the rotation of the cylinder and the gravity-induced scattering, the material mixing process is gentle without excessive shearing, which can protect the integrity of material particles and ensure high color mixing uniformity;
Versatile Material Adaptability: It can handle various granular or powdery materials such as plastic particles, resin pellets and food raw materials, and is suitable for color mixing needs in industries like plastics, food and chemical engineering;
Stable and Reliable Operation: With a simple and compact structure, the rotating components are made of wear-resistant materials and precision bearings. It operates with low vibration, low noise, low failure rate and long service life;
Convenient Operation and Maintenance: The cylinder mostly adopts a side-opening or flip-top design, enabling easy feeding and discharging. There are no complex dead corners inside, so the cleaning difficulty is low and the daily maintenance workload is small.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
