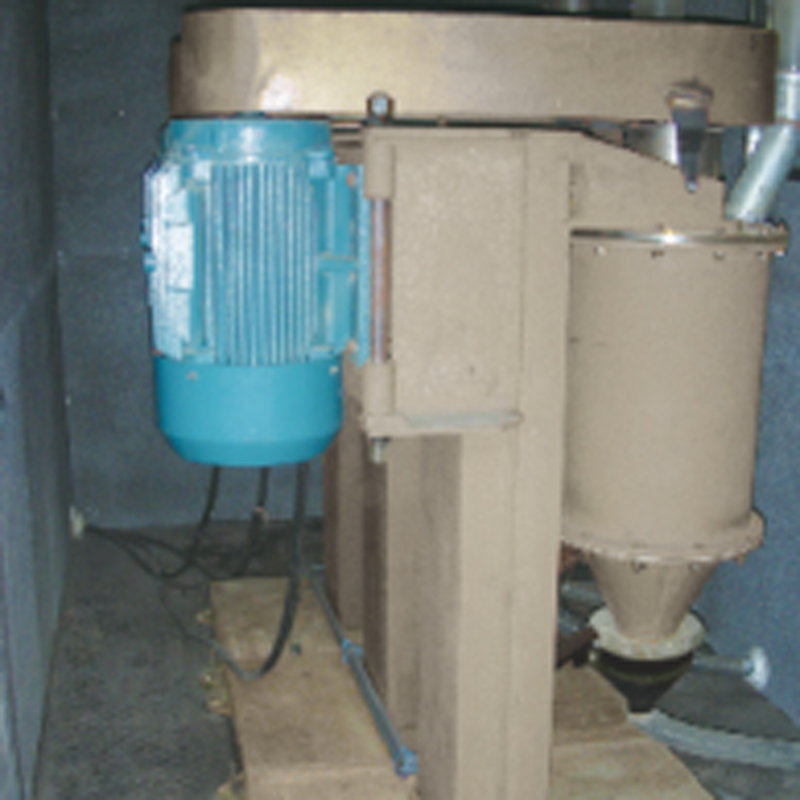

LTM-3 Type Vertical Colour Mixe
Main technical parameters
| grinding medium | loop |
| number of medium | 72+54+54+54 |
| output | 30~250kg/h |
| grinding particle | 10~100μm |
| powder | 15~22kw |
| revolving speed | 1500rpm |
| weight | 500kg |
| size | 1500×800×1800 |
Working Principle
The LTM-3 3D Grinder takes multi-dimensional grinding components as its core, and the grinding rotor and grinding media inside the grinding chamber operate in coordination driven by a motor. After the material to be ground enters the chamber, the centrifugal force generated by the high-speed rotation of the rotor drives the grinding media (such as grinding balls) to form a three-dimensional circular motion. At the same time, the special toothed structure on the rotor cooperates with the chamber wall to exert extrusion, shearing and impact effects on the material. The material is repeatedly collided and ground by the grinding media in the three-dimensional space, and gradually refined to the target particle size. In addition, the flow-guiding structure inside the chamber guides the uniform distribution of materials, avoiding local accumulation, ensuring a comprehensive and efficient grinding process, and finally outputting grinding products with uniform particle size through the screening device.
Product Features
Excellent Grinding Effect: Relying on the 3D grinding structure, the material is fully ground under multi-dimensional forces, and the finished product has uniform particle size, which meets the needs of fine processing and is suitable for material refinement in fields such as chemical industry, pharmacy and food industry;
Wide Adaptability: It can process materials in various forms such as powder and granules. Whether it is hard minerals or tough organic materials, it can achieve efficient grinding, adapting to processing scenarios in different industries;
Stable Operation: Adopting high-strength grinding components and precise transmission structure, it has low vibration and low noise during operation. Moreover, the grinding media has uniform wear, which reduces the risk of equipment failure and ensures continuous production;
Convenient Maintenance: The grinding chamber and grinding components adopt a detachable design, which is convenient for cleaning residual materials and replacing grinding media after shutdown. The equipment has a simple structure, and the daily inspection and maintenance operations are easy, reducing the operation and maintenance costs.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
