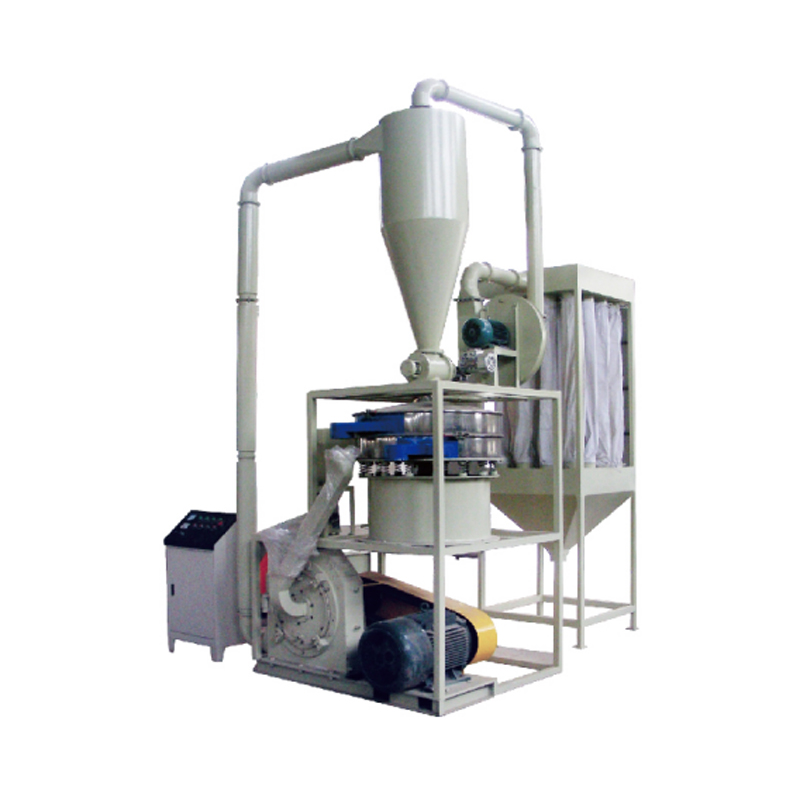

MF-500 Disc-type Milling Machine
Main technical parameters
| Model | MF-500 |
| Grinding disc diameter | 500mm |
| Main motor | 45kw |
| Fan | 7.5kw |
| The motor mobility of the vibrating screen | 1.1kw |
| Discharge motor | 0.75kw |
| Grinding amount of hard PVC | 250-350kg/h |
| LDPE solubility index 70 grinding amount | 150-250kg/h |
Working Principle
The MF-500 Disc-Type Pulverizer takes double grinding discs (fixed grinding disc and rotating grinding disc) as its core working components. When the equipment operates, the motor drives the rotating grinding disc to rotate at high speed. After the material to be ground enters the grinding chamber through the feed inlet, it is transported to the grinding area between the double grinding discs under the action of centrifugal force and gravity. The relative high-speed movement of the fixed grinding disc and the rotating grinding disc exerts strong extrusion, grinding and shearing effects on the material, gradually breaking and refining the material. At the same time, the air flow in the grinding chamber drives the refined powder to move towards the discharge outlet. During this process, the built-in classification structure can screen out the powder with qualified particle size to avoid the mixing of coarse particles, and finally output the finished powder with uniform particle size to meet the needs of subsequent processing.
Product Features
High Grinding Precision: Relying on the precise cooperation of the double grinding discs and the classification structure, the finished powder has uniform particle size, which can meet the processing scenarios with high requirements for fineness, and is suitable for material grinding in fields such as food, chemical industry and medicine;
Wide Material Adaptability: It can process various solid materials such as grains, Chinese herbal medicines, ores and plastic particles. Whether it is brittle, fibrous or medium-hard materials, it can achieve efficient grinding, adapting to the needs of multiple industries;
Stable Operation and Low Consumption: Adopting high-strength grinding discs and an optimized transmission structure, it has low vibration and low noise during operation. Moreover, the grinding discs wear uniformly, which can maintain stable grinding efficiency for a long time and reduce energy consumption and operation and maintenance costs;
Convenient Operation and Maintenance: The equipment has a smooth feeding and discharging process, and the control panel is simple and easy to understand, facilitating the adjustment of operating parameters; the grinding discs and grinding chamber adopt a detachable design, making it convenient and fast to clean residual materials and replace wearing parts after shutdown, reducing the threshold for use.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
