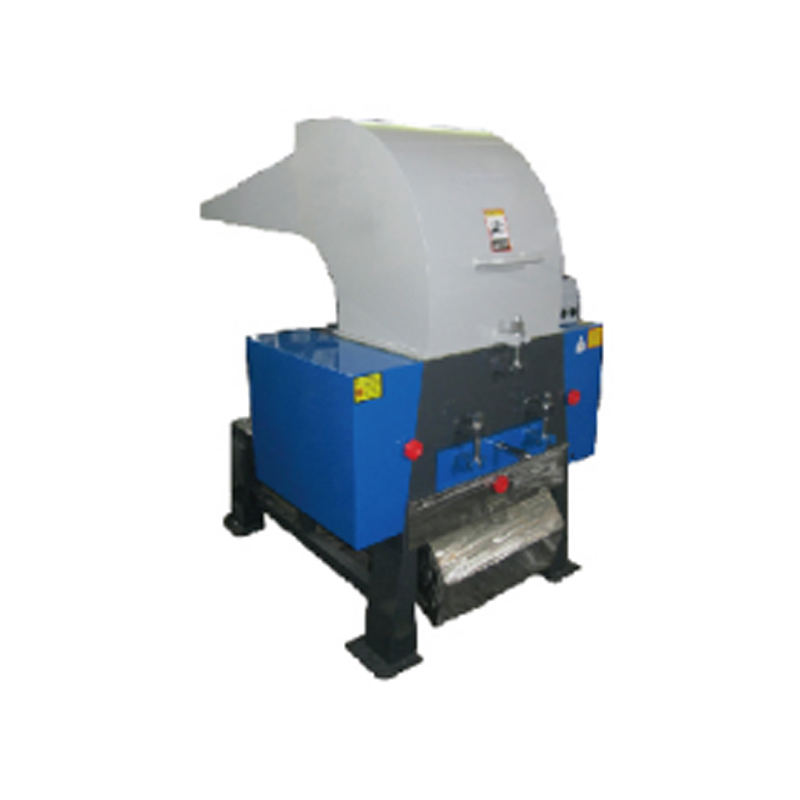

Plastic Crusher: Shreds PET/PP/PE, suitable for recycling and plastic product factories
Main technical parameters
| Model | Crusher Room Diameter(mm) | Mill Ability(kg/m) | Efficiency(kw) | Constant Knife Number | Constant Knife Number | HXWXLMechanical Size | Weight（kg） |
| PC180 | 190×150 | 30 80 | 2.2 | 2 | 9 | 380×530×800 | 250 |
| PC230 | 215×230 | 50 110 | 4 | 2 | 6 | 890×650×1102 | 300 |
| PC300 | 310×245 | 110 250 | 5.5 | 2 | 9 | 1050×800×1200 | 450 |
| PC400 | 400×250 | 200 450 | 7.5 | 2 | 12 | 1200×880×1330 | 550 |
| PC500 | 501×265 | 360 720 | 11 | 2 | 15 | 1380×1000×1380 | 650 |
| PC600 | 601×265 | 470 870 | 15 | 2 | 18 | 1330×1100×1500 | 750 |
| enhanced series | |||||||
| PC500A | 510×350 | 420 720 | 18.5 | 2 | 9 | 1400×1100×1600 | 100 |
| PC500B | 510×270 | 600 720 | 11 | 2 | 9 | 1400×1100×1600 | 1050 |
| PC600A | 650×425 | 600 870 | 22 | 2 | 12 | 1400×1130×1810 | 1800 |
| PC600B | 610×270 | 600 870 | 15 | 2 | 12 | 1400×1130×1810 | 1850 |
| PC800A | 810×520 | 800 1000 | 22 30 | 2 | 15 | 2080×1500×2100 | 2000 |
| PC1000A | 1001×650 | 1000 1300 | 30 40 | 2 | 18 | 2080×1780×2100 | 3000 |
Working Principle
The high-power crusher takes the high-speed rotating movable knife set and fixed knife as its core working structure. When the equipment operates, the motor drives the movable knife set to rotate powerfully along the main shaft. When materials such as waste plastic, defective plastic granules or various polystyrene foam boxes enter the crushing chamber, the high-speed rotating movable knife and fixed knife form a high-strength shearing and impact effect, quickly breaking the material structure and gradually crushing large or block materials into small granules. At the same time, the flow-guiding design in the crushing chamber guides the materials to continuously contact the knives, avoiding material accumulation and jamming, ensuring an efficient and continuous crushing process, and finally outputting uniform granules that meet the requirements of recycling and reprocessing.
Product Features
Wide Material Adaptability: It can efficiently crush waste plastic and defective plastic granules, and also handle various polystyrene foam boxes, covering multiple common material types in the plastic recycling field;
Low-Noise Operation: Equipped with sound-proofing equipment, it can effectively reduce noise during operation, minimize interference to the working environment, and improve operational comfort;
Convenient Maintenance: Adopting a detachable knife design, the knives can be individually disassembled for grinding or replacement after wear, without the need for overall equipment disassembly, reducing maintenance difficulty and costs;
High Crushing Efficiency: Relying on the powerful movable knife set and precise knife shape design, it has strong crushing force and fast speed, which can quickly complete material crushing and meet the needs of batch processing.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
