01

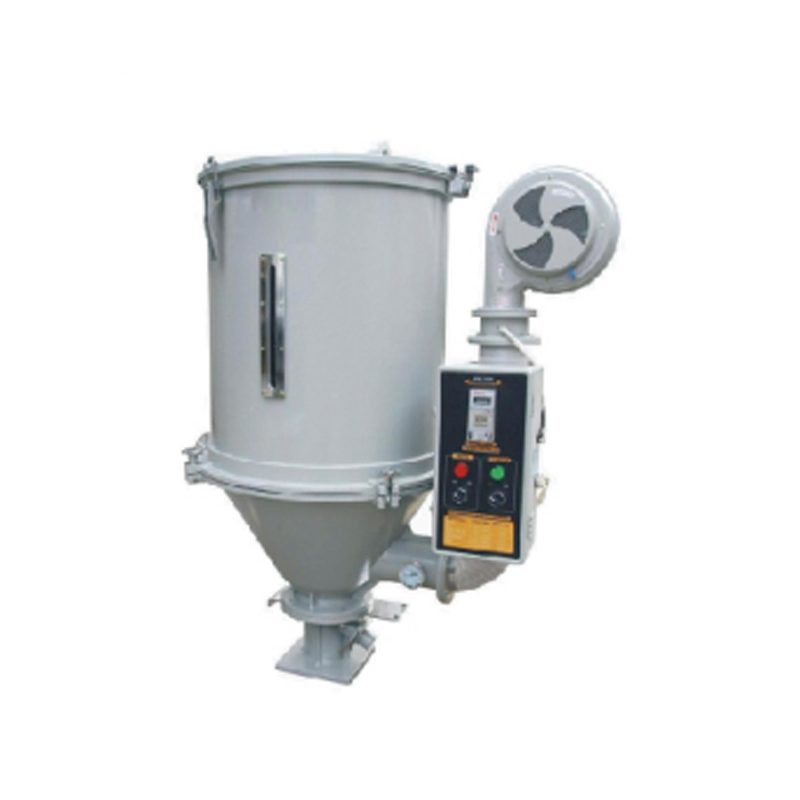

Plastic Dryer: Dries pellets, suitable for plastic processing and injection molding workshops
Main technical parameters
| Model | Loading materials (KG) | Power (kw) Electric heating fan | Use voltage (V) | Mechanical dimensions (cm) | Installation dimensions (cm) | Weight |
| SDG-12E | 12 | 1.8 0.05 | 220v,1φ | 63×40×83 | 120×120 | 22 |
| SDG-25E | 25 | 3.5 0.09 | 220v,1φ | 76×50×104 | 140×140 | 34 |
| SDG-50E | 50 | 4.5 0.10 | 380v,1φ | 87×54×121 | 160×160 | 45 |
| SDG-75E | 75 | 6.5 0.25 | 380v,3φ | 94×60×131 | 160×160 | 56 |
| SDG-100E | 100 | 6.5 0.25 | 380v,3φ | 101×70×141 | 180×180 | 68 |
| SDG-150E | 150 | 9.0 0.35 | 380v,3φ | 110×74×162 | 200×200 | 78 |
| SDG-200E | 200 | 12 0.35 | 380v,3φ | 118×84×176 | 230×230 | 110 |
| SDG-300E | 300 | 15 0.75 | 380v,3φ | 142×100×183 | 27.5×27.5 | 152 |
| SDG-400E | 400 | 20 0.75 | 380v,3φ | 148×106×202 | 27.5×27.5 | 170 |
| SDG-500E | 500 | 20 1.1 | 380v,3φ | 150×108×220 | 28×28 | 220 |
| SDG-600E | 600 | 28 1.1 | 380v,3φ | 158×116×240 | 280×280 | 280 |
| SDG-800E | 800 | 32 2.2 | 380v,3φ | 183×128×248 | 350×350 | 460 |
| SDG-1000E | 1000 | 40 2.2 | 380v,3φ | 202×142×248 | 500×500 | 680 |
| SDG-1500E | 1500 | 50 3.0 | 380v,3φ | 204×142×319 | 500×500 | 800 |
Working Principle
The plastic dryer adopts the direct hot-wing drying technology and operates based on special manufacturing processes originating from Europe and America. During operation, the hot-wing structure forms an efficient heat exchange space, allowing hot air to act on plastic raw materials evenly and avoiding the problem of uneven heating of raw materials in traditional box-type baking. The hot air continuously penetrates the raw materials, accelerating the evaporation of moisture inside the raw materials while ensuring the raw materials are completely dried. It provides qualified raw materials for the subsequent plastic molding process, and can be used in conjunction with various plastic molding machines to integrate into the plastic production process.
Product Features
Advanced Technology: It adopts hot-wing drying technology to replace traditional box-type baking, featuring higher drying efficiency. It can reduce labor input, improve product quality, lower production costs, and ensure the qualification of plastic products;
High-Quality Material: The entire machine is made of full stainless steel, taking the lead in applying this material in the industry, which balances durability and hygiene;
Stable Performance: It has excellent temperature adjustment performance with precise temperature control. Equipped with high-quality electrical components, it operates stably and efficiently. In addition, it is equipped with a programmable switch, ensuring safe and reliable operation and adapting to diverse needs in plastic production.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
