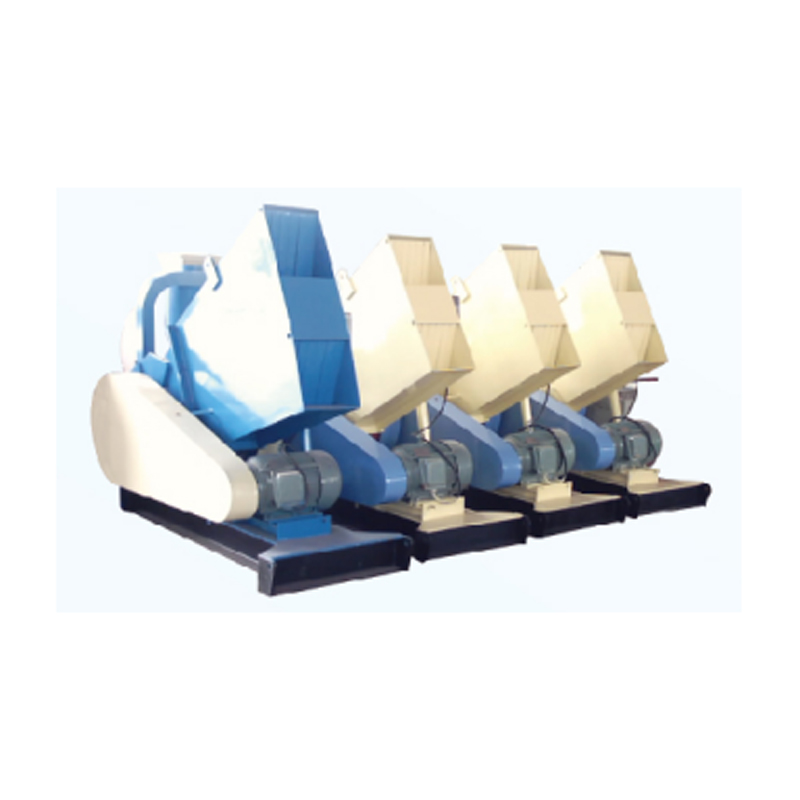

Series Plastic Breaker: Crushes thick plastic parts, suitable for plastic and recycling factories
Main technical parameters
| Type | SWP200 | SWP320 | SWP360 | SWP400 | SWP630 |
| Diameter of Rotating Blade(mm) | 200 | 320 | 360 | 400 | 630 |
| Rotating Blade Quantity | 3 | 6 sticks per 2 sets | 12 sticks per 4 sets | 5 | 9 sticks per 2 sets |
| (Kg) | 870 | 650 | 650 | 500 | 480 |
| Fixed Blade Quantity | 2 | 2 | 8 sticks /4 sets | 2 | 4 sticks /2 sets |
| Apedure of Screen(mm) | φ8 | φ48 | φ10 | φ10 | φ10 |
| Grinding Capacity(kg/h) | 50-110 | 250-350 | 300-400 | 350-450 | 700-850 |
| Power(kw) | 4 | 11 | 11 | 15 | 44 |
| Power Source | 3φ380V50Hz | ||||
| Aperture of Feed Inlet(mm) | 240×350 | 500×280 | 268×120 | 375×320 | 820×610 |
| Machine Weight(kg) | 300 | 1400 | 800 | 1000 | 3000 |
| Appearance Size(mm) | 1000×590×1090 | 613×1150×1910 | 1800×1460×1880 | 2500×1200×2000 | 2754×2000×2850 |
| Technical parameters are subject to change without further notice | |||||
Working Principle
The series plastic crushers take the high-speed rotating crushing knife sets as their core working components. When the equipment operates, the motor drives the knife sets to rotate at high speed along the main shaft. When plastic wastes (such as engineering plastic scraps, defective plastic products, foamed plastics, etc.) enter the crushing chamber, the high-speed rotating movable knives and fixed knives shear and collide with each other, gradually crushing large plastic pieces into small granules. At the same time, the flow-guiding structure inside the crushing chamber guides the materials to continuously contact the knives, avoiding material accumulation and ensuring the continuous progress of the crushing process. Finally, the plastic wastes are converted into granular materials that meet the requirements of recycling or reprocessing.
Product Features
Stable Crushing Effect: Relying on the precisely matched structure of movable knives and fixed knives, it can efficiently crush different types of plastics. The crushed granules have uniform sizes, meeting the basic requirements of subsequent recycling and utilization;
Wide Application Range: It can handle plastic wastes of various materials such as soft plastics, hard engineering plastics and foamed plastics, covering common waste crushing scenarios in the plastic processing industry;
Safe and Low-Noise Operation: Equipped with a sound arrester to effectively reduce operating noise, and at the same time, it is provided with a safety protection structure to avoid potential safety hazards during operation;
Convenient Maintenance: The crushing knives adopt a detachable design. After wear, they can be separately disassembled for grinding or replacement. There are no complex dead corners inside the equipment, making cleaning convenient after shutdown and reducing maintenance
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
