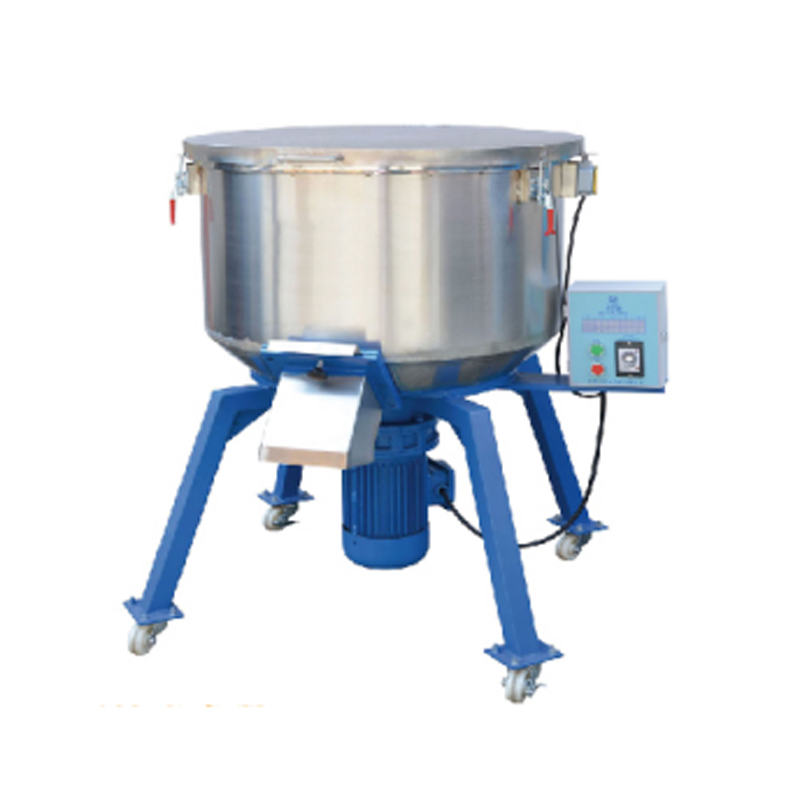

Vertical Colour Mixer: Fast mixing, suitable for injection molding and plastic modification workshops
Main technical parameters
| Model | Motor power | Mixing capacitr | Mechanical size | Weight |
| HS-25 | 0.75kw | 25kg/3min | 750×700×920 | 85 |
| HS-50 | 1.5kw | 50kg/3min | 900×880×1020 | 100 |
| HS-100 | 3kw | 100kg/3min | 1010×1000×1260 | 175 |
| HS-150 | 4kw | 150kg/3min | 1230×1200×1320 | 233 |
| HS-200 | 5.5kw | 200kg/3min | 1350×1300×1420 | 255 |
Working Principle
The vertical color mixer takes a vertically installed mixing shaft as its core, with spiral or paddle-type mixing components mounted on the shaft. When the equipment operates, the mixing shaft drives the mixing components to rotate at high speed, generating an upward lifting force and radial thrust on the materials inside the barrel. Under the action of the mixing components, the materials move upward along the inner wall of the barrel to the top, then fall naturally due to gravity, forming a "rising-falling" circular convection. At the same time, the shearing effect of the mixing components can break up material agglomeration, allowing materials of different colors and components to be fully blended in the continuous circulation, and finally achieving uniform color mixing and material blending.
Product Features
Efficient and Uniform Mixing: Relying on the dual effects of "circular convection + shearing", the material mixing speed is fast, which can effectively avoid local color unevenness and meet the needs of batch color mixing;
Wide Adaptability to Materials: It can handle various materials such as plastic particles, resin pellets, and powders, and is especially suitable for the raw material color mixing process in the plastic processing industry;
Small Floor Space: The vertical structure design greatly reduces the equipment's floor area, making it suitable for production scenarios with limited workshop space and facilitating production line layout;
Easy Operation and Maintenance: The barrel mostly adopts an openable or side-tilting design, enabling convenient feeding and discharging. There are no complex dead corners inside, making cleaning easy and reducing daily maintenance costs.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
