01

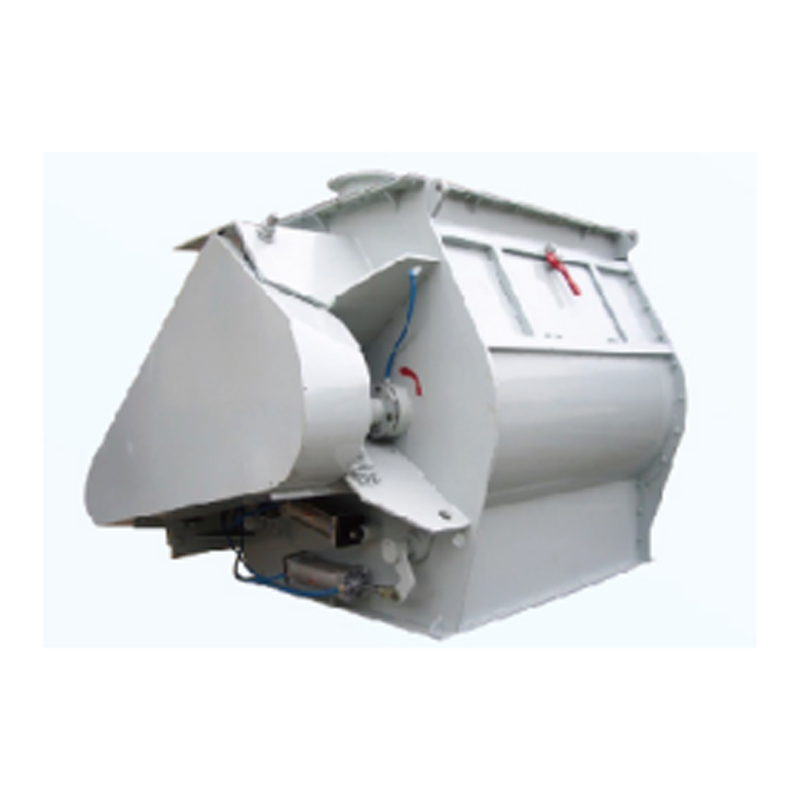

WZL-Horizontal No-Gravity Mixer
Main technical parameters
| Model Specification (m³) | WZL-0.1 | WZL-0.25 | WZL-0.5 | WZL-1 | WZL-2 | WZL-4 | WZL-6 | WZL-8 | WZL-10 |
| One-time mixing (kg) | 30-50 | 75-125 | 150-250 | 300-500 | 600-1000 | 200-2000 | 1800-3000 | 2400-4000 | 3000-5000 |
| Motor power (kw) | 3 | 4 | 5.5~7.5 | 7.5~11 | 11~15 | 22~30 | 30~37 | 37~45 | 45~55 |
| Equipment weight (kg) | 400 | 750 | 1000 | 1600 | 2300 | 4800 | 6000 | 7500 | 8800 |
Working Principle
The WZL-Horizontal Zero-Gravity Mixer achieves mixing through a set of dual shafts with paddle groups rotating in opposite directions. The two paddle groups rotate along a specific trajectory, creating alternating "zero-gravity zones" and "convection zones" inside the mixer body. When materials are lifted to a certain height by the paddles, they lose support and scatter in a "zero-gravity" state. Meanwhile, the opposite rotation of the dual-shaft paddles drives the materials to convect crosswise (left and right). In addition, the paddles are designed with a special angle that can turn the materials up and down, preventing local accumulation. This allows materials of different components to quickly interpenetrate and blend inside the mixer body, ultimately achieving uniform mixing.
Product Features
Excellent Mixing Uniformity: Materials are fully dispersed under the zero-gravity state. Compared with ordinary mixing equipment, it can reduce material stratification and ensure mixing quality;
Versatile Material Adaptability: It can handle powder and granular materials, and also mix materials with a small amount of viscous substances or added liquids. It is suitable for fields such as building materials, chemical industry, and pharmaceuticals;
Reliable Operation: Adopting a horizontal structure and wear-resistant materials, it reduces vibration and wear during equipment operation, lowers the failure rate, and extends the service life;
Easy to Clean: There are no complex dead corners inside the mixer body. After shutdown, it is convenient for rinsing or cleaning, meeting production hygiene requirements and reducing cross-contamination caused by material residues.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
