01

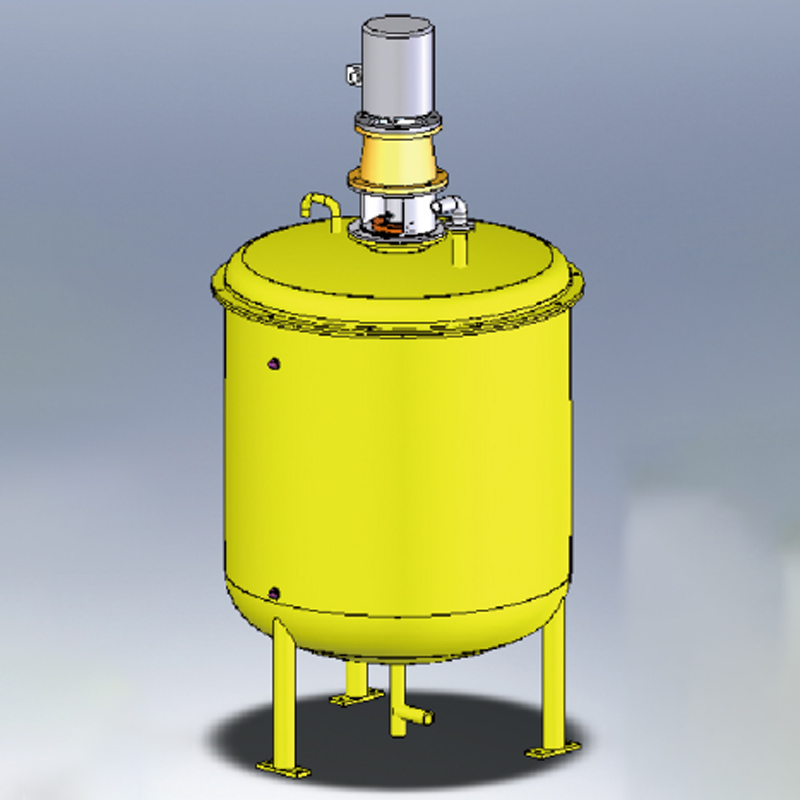

YX-The Pot Of Washing Liquid-covered Stirring
Main technical parameters
| type | working volume（L） | stirring power(KW) | dimenision Length * width * height (mm) |
| 500L | 500 | 2.2 | 2200*1400*2500 |
| 1000L | 1000 | 3 | 2500*1700*2700 |
| 2000L | 2000 | 4 | 2750*1940*3100 |
| 3000L | 3000 | 4 | 3000*2150*3500 |
| 5000L | 5000 | 5.5 | 3200*2400*3950 |
Working Principle
The YX-Type Liquid Mixer takes "power drive + stirring paddle dispersion" as its core and is suitable for mixing various liquid materials. During operation, the motor drives the main shaft to rotate through a reduction mechanism, and the dedicated stirring paddles (such as paddle-type, turbine-type) installed at the end of the main shaft rotate synchronously. When the stirring paddles rotate, they generate shearing, pushing and circulating effects on the liquid in the tank: on the one hand, they break the state of liquid stratification or uneven solid-liquid suspension; on the other hand, they promote full contact and integration of liquids with different components. For scenarios involving high-viscosity liquids or requiring rapid mixing, the blade angle and rotation speed of the stirring paddles can be flexibly adjusted to ensure that the liquid forms a stable and uniform mixture in a short time. After mixing, the mixture is discharged through the discharge port at the bottom.
Product Features
Stable mixing effect: The dedicated stirring paddle design covers the entire area inside the tank without mixing dead zones, and is suitable for various liquids such as clean water, liquid medicine and coatings.
Convenient operation: It is equipped with a speed control knob and start-stop switch, allowing rotation speed adjustment according to material characteristics; some models are equipped with a liquid level observation window for real-time monitoring.
Durable structure: Parts in contact with liquids are made of 304 stainless steel, which is corrosion-resistant and easy to clean, meeting the hygiene requirements of food, chemical and other industries.
High safety: The motor is equipped with an overload protection function to prevent equipment damage due to excessive load; the bottom of the machine body is provided with anti-slip foot pads, ensuring strong stability during operation.
Quality and Service
● Brand cooperation: Siemens PLC, ABB frequency converter, Schneider air switch contactor
● Service commitment:
Pre-sales: Customized scheme design
After-sales:
(1) Production capacity guarantee: Delivery time is divided into 30, 60, 90 and 120 days according to the project scale
(2) Warranty Policy:
1)year free warranty,
2)one-to-one service,
3)7*24-hour response
(3)Technical support:
1)Installation guidance,
2)remote diagnosis
(4) Training service: Operation/maintenance training
